Turbines

Type of widely used Steam Turbines in various fields and ships in Low and High Pressure for different powers in Electrically and Mechanically drive requirements

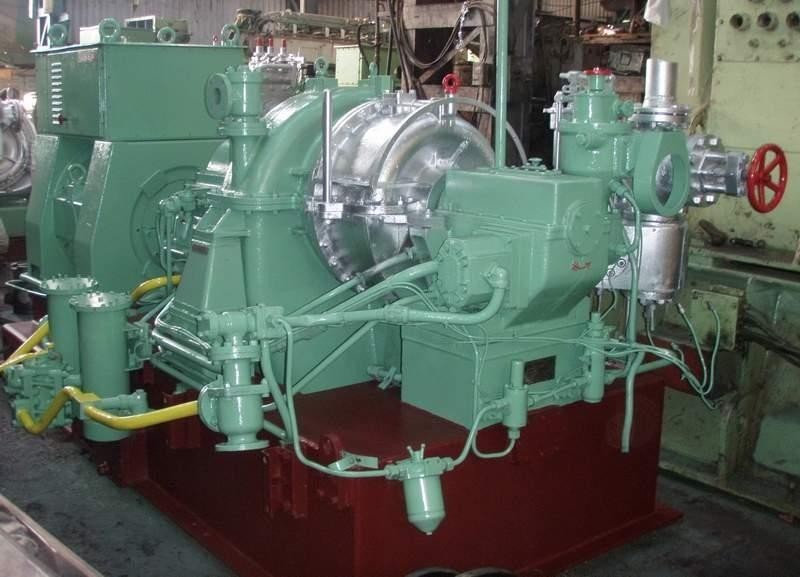

Turbine Details-PETER BROTHERHOOD
Maker PETER BROTHERHOOD
Type 18 Multi Stage
Inlet Pressure 125Lbs/2Inch
Output 500 KW
Exhaust press 27/1/2HG Vacum
Alternator
Make ASEA
Type GAD 87
KVA 625
RPM 1800
Cycle 60 HZ.
Volt 450
AMP 802
EX.VOLT 75
EX.AMP 40

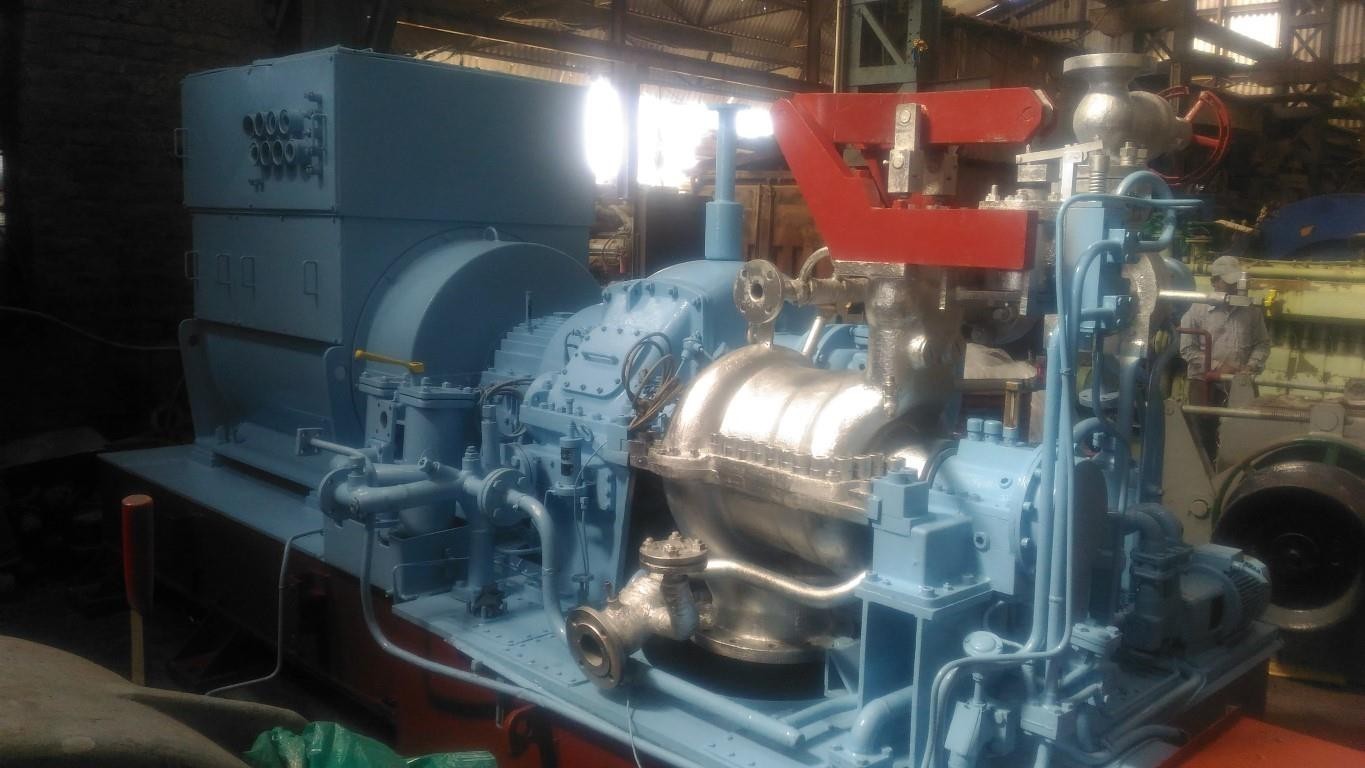

Turbine Details- STAL-LAVAL
Make STAL-LAVAL
Model No VM 0.8 D6
Rating 1000KW
RPM 11954/1800
Inlet Press 865PSIG
Inlet Temp 507°c
Exhaust Press 57 PSIG
Alternator
Make FUJI ELECTRIC
Type GFV4506M-4Z
Output 1250KVA
Volt 450V
AMPS 1604
RPM 1800
HZ 60

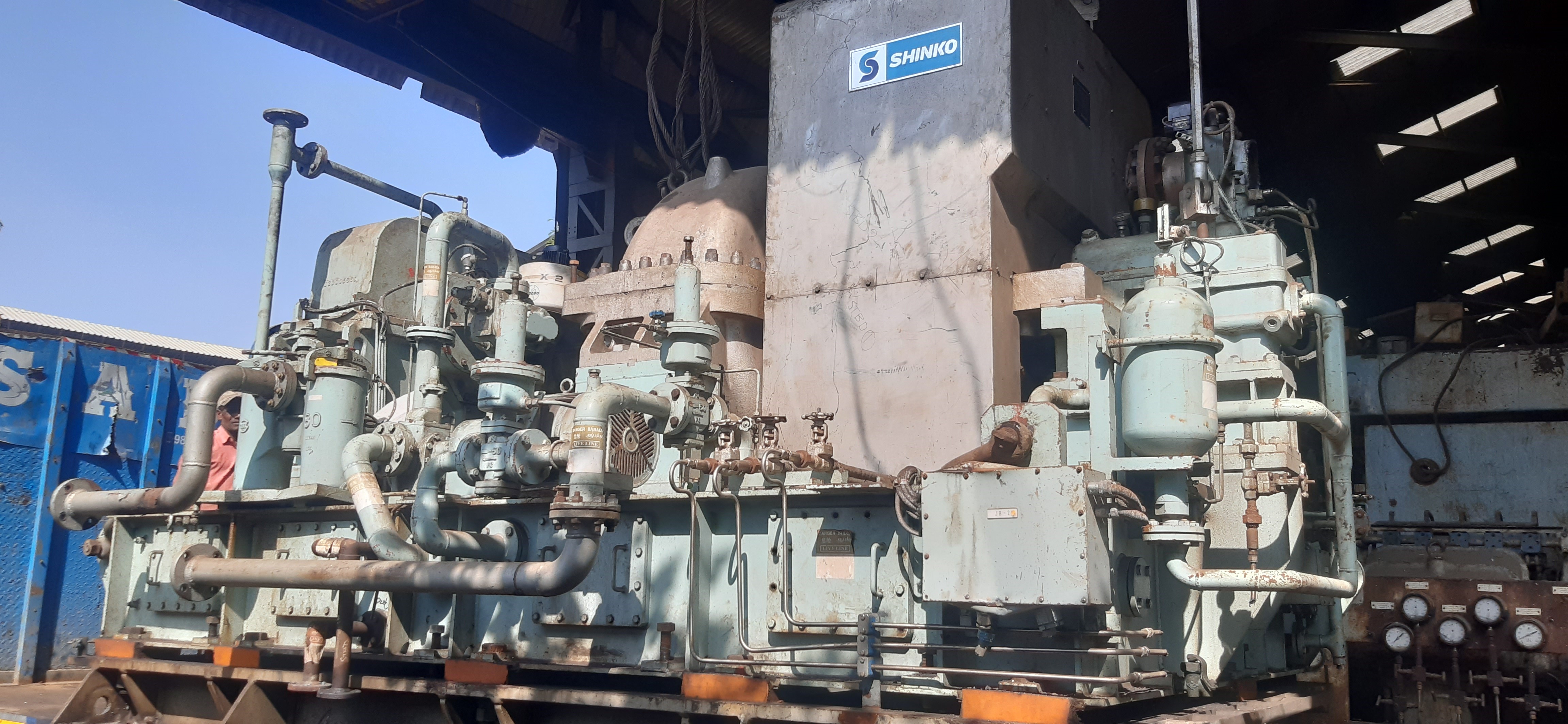

Turbine Details- SHINKO
Make Shinko
Model No DNG63-70
Rating 6500KW
RPM 6178/1800
Steam Press 20  bar G
Steam Temp 215  °C
Exhaust Vacuum 600mmHg-V
Gear Box Details
Make HITACHI
Type RG- 5000 H-4
Transmission Power 6920KW
Ratio 3.432

Governor WOODWARD
Type UG-10D

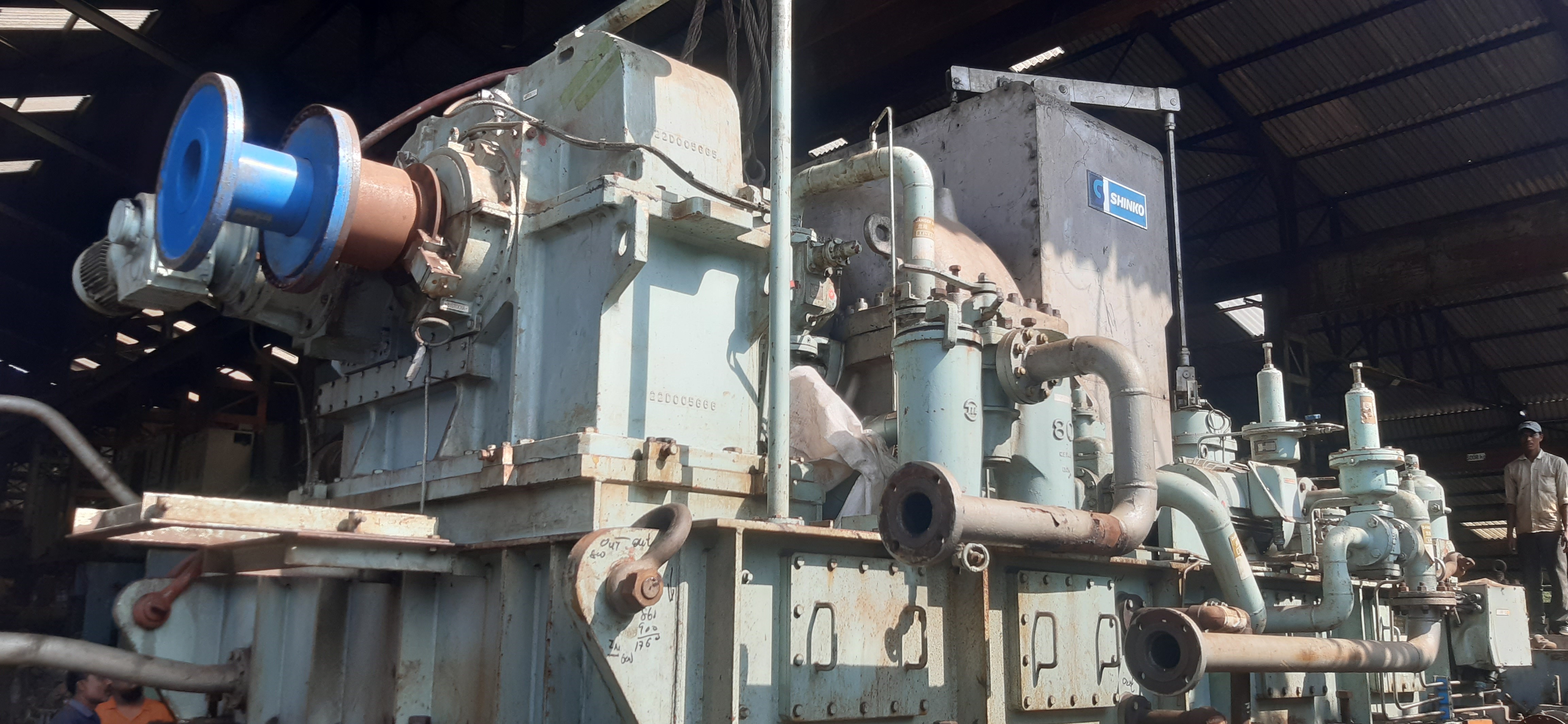

Turbine Details- SHINKO
Make Shinko
Model No RG-64M
Rating 900KW
RPM 10006/1800
Steam Press 8 Kg/cm²
Steam Temp 177  °C
Exhaust Vacuum 700mmHg-V
Gear Box Details

Make HUNDAI
Type HFJ6 504-44E
KVA 1125KVA
RPM 1800
Volt 450
Amps 1443.4
HZ 60





Turbine Details- TRIVENI
Make TRIVENI
Model No FR13
Rating 6000KW
RPM 8280/1500
Inlet Press 64KG/SO CM-G
Inlet Temp 490°c
Governor Woodward

Gearbox
Make TRIVENI
Type 0560
Power HP/KW 6600kw
Rated Input 8280
Rated Output 1500
Gear Ratio 5.52

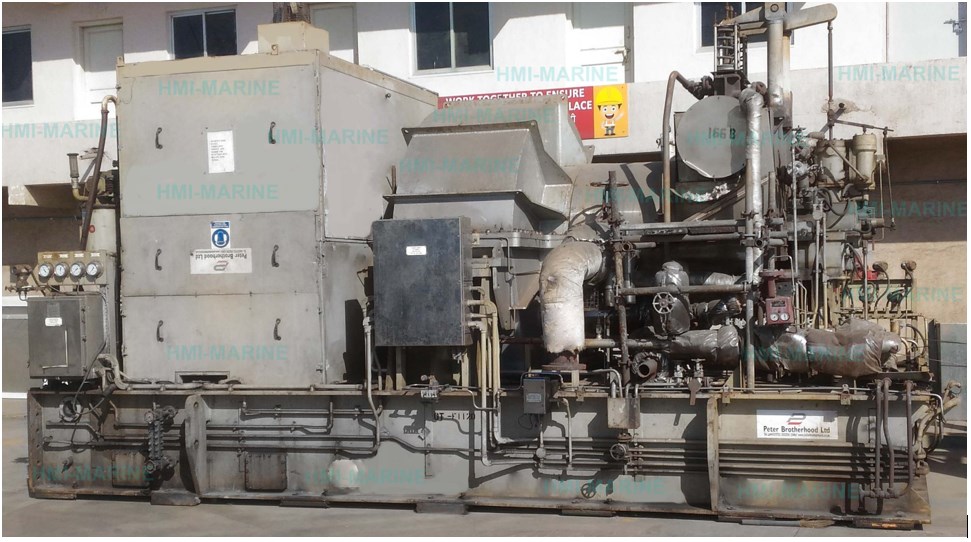

Turbine Details- PETER BROTHERHOOD
Make PETER BROTHERHOOD
Model No TM55764-B
Rating 12000KW
RPM 6878/1800
Inlet Press 60 BAR A
Inlet Temp 490°c
Exhaust Press 0.125 BAR A
GEARBOX
Make FLANDER
Type SIDE x SIDE ,SINGLE
REDUCTION - DOUBLE HELICAL
Rated Power 12310KW
Input/ Output 6879 / 1800


Turbine Details- Peter Brotherhood
Make Peter Brotherhood
Output 3000 KW MER, 3750 KW CMR
Rating 6500KW
RPM 9975/1800
Steam Press 60 kg/cm²
Steam Temp 510°c

Gear Box Details
Make PETER BROTHERHOOD
Type Side x Side,
Single Reduction,
Single Helical
Ratio 5.542 / 1

Governor Woodward Governor co
Type EGB 13P
